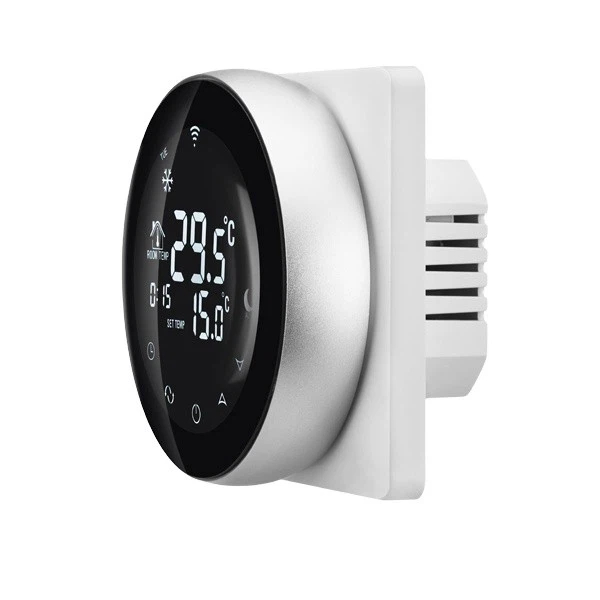

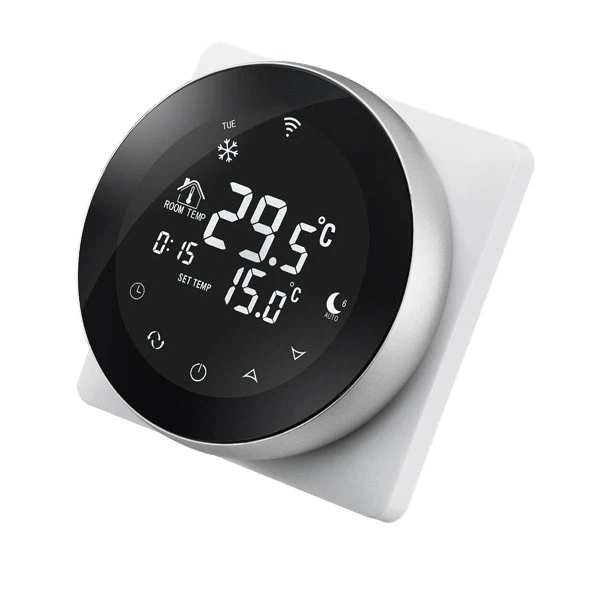

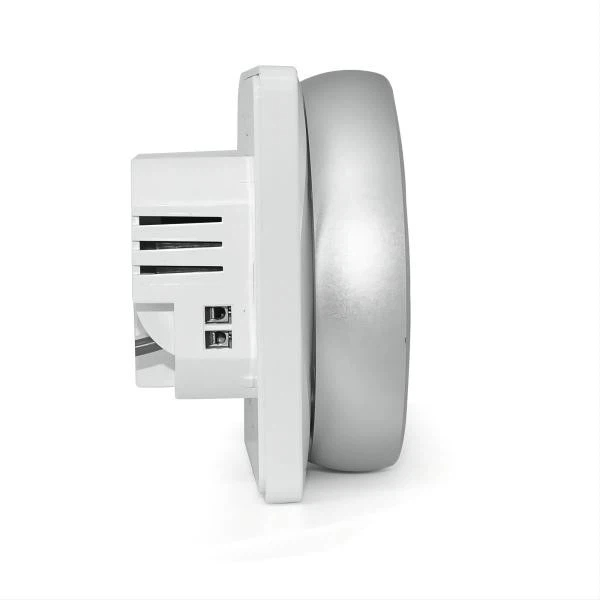

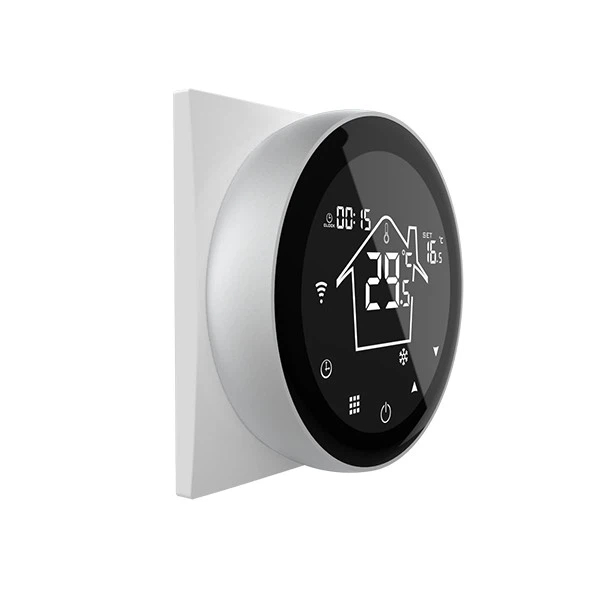

Water Heater Thermostat Control
Feature: Touch Screen, Wi-Fi function, Voice Control
Model: WE, WW, or LD optional
HY312WE 16A for Electric heating
HY312WW 3A for Water heating
HY312LD 3A for Gas boiler
Production Introduction
If you're looking for a water heating temperature controller that offers unparalleled performance, ease of use, and reliability, you've come to the right place. The HY312 Water Heating Temperature Controller is the perfect solution to help you achieve your desired water temperature. The HY312 Water Heating Temperature Controller features a large, easy-to-read LED screen that shows the current temperature and target temperature. The controller also features a simple interface that enables you to make adjustments to the temperature quickly and easily.
Product Specifications
|
Power: |
90-240Vac 50/60Hz |
|
Type |
Tuya smart thermostat |
|
Display accuracy: |
0.5°C |
|
Programmable |
5+2/6+1/ 7 days |
|
Contact capacity: |
3A(WW/LD); 16A(WE) |
|
Limit temperature range: |
1~70°C |
|
Range of temperature adjustment: |
5~35°C |
|
Insulating condition: |
Normal environment |
|
Probe sensor: |
NTC(10k)1% |
|
Output: |
Switch relay |
|
Installation: |
recessed type (in the wall) |
|
Size(mm)： |
86*86*27mm |
Product Feature
1. Supports APP voice control. Compatible with Amazon Alexa, Google Assistant, Tuya
2. A built-in sensor and external probe selection
3.5+2/6+1/7 days weekly programmable mode
4.3 modes to choose from automatic mode, manual mode, and holiday mode
5. Ventilation mode
6. Data storage when disabled
7. Child lock function
8. Temperature calibration
Product Application
Power Supply: 200~240V AC;50-60HZ
Rated Current: 16A(WE);3A(WW)
Set Temp. Range: 5-99℃
Accuracy: 0.5℃
Min On-Off Temp. Dif.: +-0.5℃
Floor Sensor Mode: NTC 10K3950
APP Control:Tuya Smart/Smart Life (2.4G WIFI)
Voice Control:Amzone Alexa / Google Home Assistant
Programable Automatic Mode:5+2/6+1/7days mode; 6 periods in weekday and 2 periods in weekend
Three Sensor Mode:Air Sensor/ Floor Sensor/ Both
Packing Listing
One of the best features of the HY312 Water Heating Temperature Controller is its automatic safety shut-off system. This system ensures that the controller shuts off in case of any overheating, thus preventing any accidents from occurring.
The HY312 Water Heating Temperature Controller is an eco-friendly and energy-efficient solution. It automatically powers off when the temperature is stable, thereby saving on energy costs while still keeping the water at the desired temperature.
FAQ
Q1:Could we order a sample to test ?
Sure.It is available.
Q2:What Certificate do you have for this product?
CE (EMC,LVD,Health and Radio) & Rohs.
Q3: Could we pack it with personalization package ?
Of course ,and MOQ is 1000pcs if needed.
Q4: How long is the delivery time ?
Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.
Q5: What Certificate do your factory have?
ISO9001 and BSCI certificate.
