Electric Heater Wifi Control
Feature: Touch Screen, Wi-Fi function, Voice Control
Model: WE, WW, or LD optional
HY510WE for Electric heating 16A
HY510WW-1 for Water heating 3A
HY510LD for Gas boiler 3A
Production Introduction

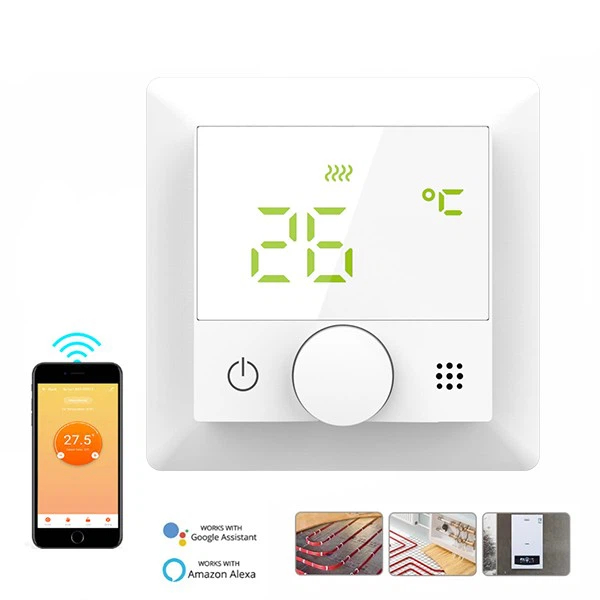

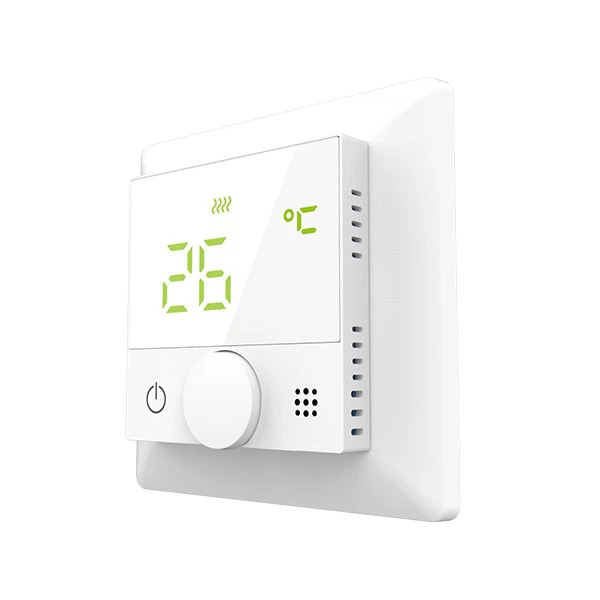

New HY510 floor heating thermostat – the latest addition to our product lineup that is set to revolutionize the way you heat your home. With advanced features and user-friendly controls, this state-of-the-art thermostat is the perfect solution for anyone looking to upgrade their comfort and save on energy bills.
At the heart of the HY510 thermostat is a high-precision temperature sensor that ensures accurate readings and maintains a consistent room temperature. This advanced sensor is complemented by a sleek LED touchscreen display that allows you to easily set your preferred temperature and adjust the heating schedule to suit your routine.
Product Specifications
|
Power: |
90-240Vac 50/60Hz |
|
Type |
Tuya smart thermostat |
|
Display accuracy: |
0.5°C |
|
Programmable |
5+2/6+1/ 7 days |
|
Contact capacity: |
3A(WW/LD); 16A(WE) |
|
Limit temperature range: |
1~70°C |
|
Range of temperature adjustment: |
5~35°C |
|
Insulating condition: |
Normal environment |
|
Probe sensor: |
NTC(10k)1% |
|
Output: |
Switch relay |
|
Installation: |
recessed type (in the wall) |
|
Size(mm)： |
82*82mm(frame) |
Product Feature
【App control】Simply connect to WiFi to remotely control your underfloor heating thermostat WiFi anytime from anywhere through your smartphone using the Smart Life/Tuya App. Make changes easily to your temperature settings, create a schedule, create a smart scene or share the device with your family on the app. 2.4GHz WiFi is required.
【Weekly programming】The Hysen WiFi thermostat has a manual mode, program mode, and holiday mode. The program mode features 5/2-day, 6/1-day, and 7/0-day scheduling with 6 time periods per day, giving you the freedom to program your weekly schedule and helping save energy and costs on your energy bill.
Product Application
Power：90-240Vac 50/60HZ
Sensor:：NTC(10k)1%
Current：3A (WW)；16A (WE)
Set temperature range 1~70°C
Default set temperature range：5~35℃
Accuracy：±0.5℃
External sensor：options（NTC）
Size： 82*82mm(frame)
Packing Listing
1 x Thermostat
2 x Screw
1 x English Manual
FAQ
Q1:Could we order a sample to test ?
Sure.It is available.
Q2:What Certificate do you have for this product?
CE (EMC,LVD,Health and Radio) & Rohs.
Q3: Could we pack it with personalization package ?
Of course ,and MOQ is 1000pcs if needed.
Q4: How long is the delivery time ?
Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.
Q5: What Certificate do your factory have?
ISO9001 and BSCI certificate.
