Wireless Heating Control Systems
Model:
HY703RF BW
HY703RF WE
HY703RF WW
Production Introduction

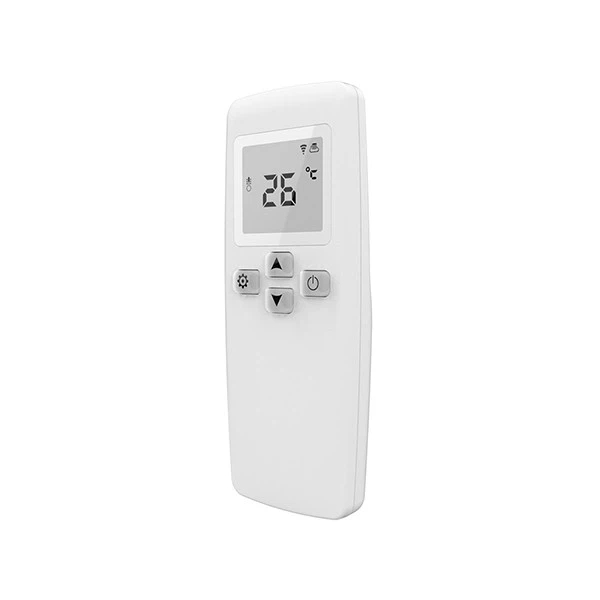

HY703RF gas boiler thermostat is used to control the gas boiler. The set of thermostats includes a Wireless Thermostat and a Receiver.

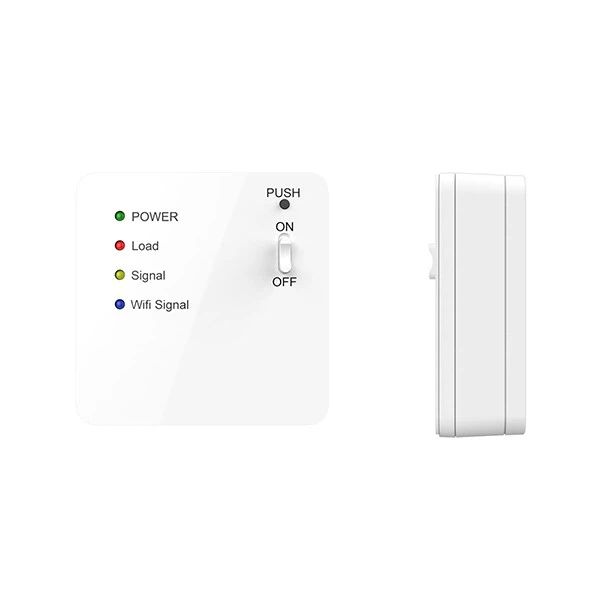

The thermostat panel is an emitter. It has 1.5V two sections of AA battery. The thermostat panel can be put in any room. The receiver is generally installed beside the boiler, and it is connected to the boiler.HY703 series thermostats are suitable for temperature control of electric floor heating system, water floor heating system and gas boiler heating system, all products are designed with backlight.
Product Specifications
|
Power: |
2*AA/USB adapter (Type-C USB 5V/1A) |
|
Type |
Tuya smart thermostat |
|
Display accuracy: |
0.5°C |
|
Programmable |
5+2/6+1/ 7 days |
|
Contact capacity: |
3A(WW/LD) 16A(WE) |
|
Limit temperature range: |
1~70°C |
|
Range of temperature adjustment: |
5~35°C |
|
Insulating condition: |
Normal environment |
|
Probe sensor: |
NTC(10k)1% |
|
Output: |
Switch relay |
|
Size(mm)： |
143*56*23mm |
|
Material: |
Anti-flammable PC +ABS |
Product Feature
RF Remote Control: Easy to install, applicable to anywhere you like
APP Control: Smart thermostat that can be controlled by your phone before you come back home. (APP: Tuya ,Smart life)
Voice Control: Working with Alexa Google Home
Weekly Programmable: Supports full auto programs or manual setup
Memory Function: No need to worry about power failure, data memory when power is off.
Child lock function: prevent children from accidentally touching.
Family Sharing: Share devices with your family members to control our house temperature via a smart smartphone APP together.
Product Application
Thermostat operating voltage: 2*AA/USB adapter (Type-C USB 5V/1A)
Sensor:: NTC(10k)1%
Setting temperature range: 5~35℃ (default)
Display resolution: ±0.5℃
Receiver operating voltage: 90-240VAC 50/60Hz
Receiver load current:16A
Thermostat size: 【143*56*23】mm
Packing Listing
1 * Thermostat
1 * Receiver
1 * User Manual
2 pairs of screws
FAQ
Q1:Could we order a sample to test ?
Sure.It is available.
Q2:What Certificate do you have for this product?
CE (EMC,LVD,Health and Radio) & Rohs.
Q3: Could we pack it with personalization package ?
Of course ,and MOQ is 1000pcs if needed.
Q4: How long is the delivery time ?
Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.
Q5: What Certificate do your factory have?
ISO9001 and BSCI certificate.
