Wireless Boiler Programmer

Function: Wireless Boiler Programmer
Model:
HY05RF BW
HY05RF WE
HY05RF WW

Send lnquiry

Description

Production Introduction

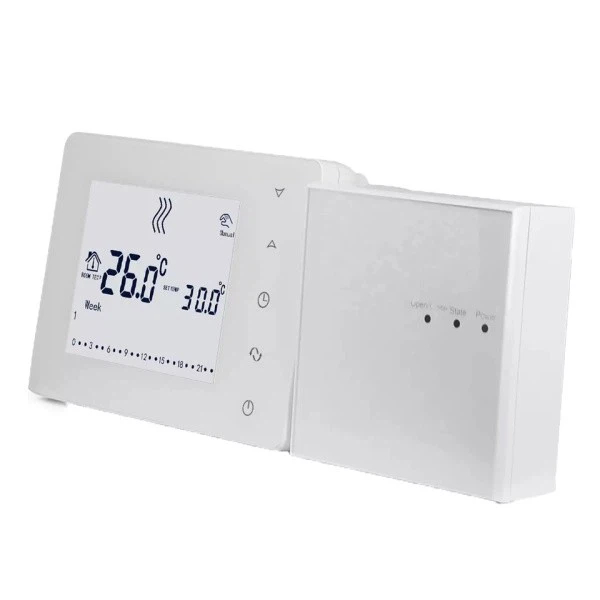

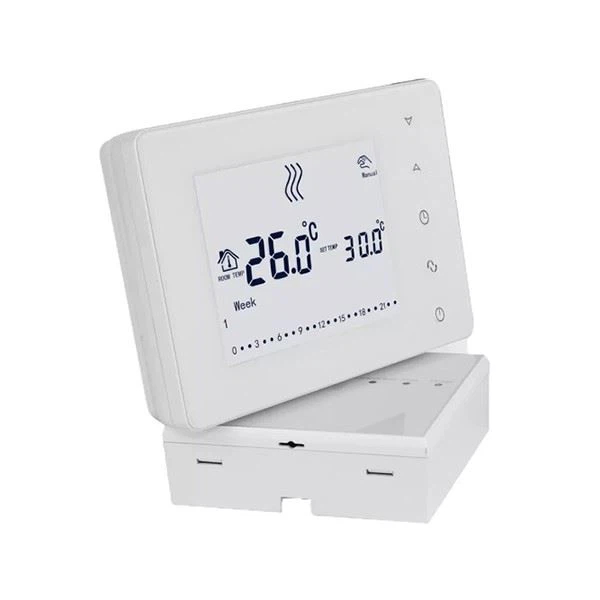

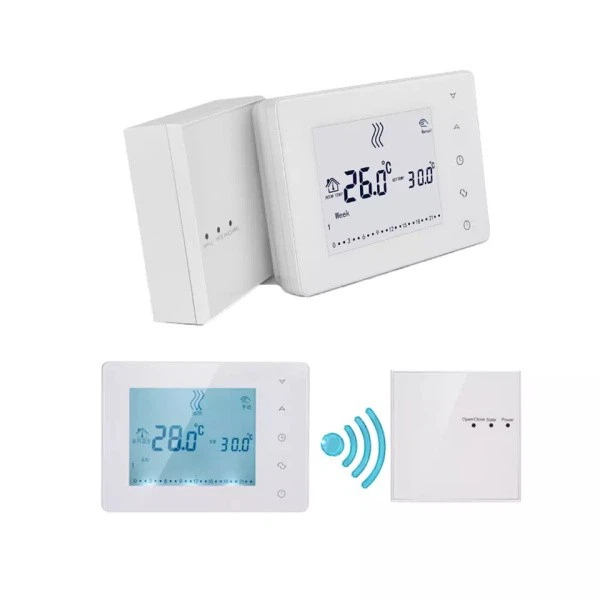

HY05RF gas boiler thermostat is used to control the gas boiler. The set of thermostats includes a Wireless Thermostat and a Receiver.
The thermostat panel is an emitter. It has 1.5V two sections of AA battery. The thermostat panel can be put in any room. The receiver is generally installed beside the boiler, and it is connected to the boiler.
The thermostat panel can detect the room temperature, compare the room temperature with the set temperature, and send instructions to the receiver to control the boiler to work.

Product Specifications

Power:	2 AA* 1.5V alkaline batteries
Type	Tuya smart thermostat
Display accuracy:	0.5°C
Programmable	5+2/6+1/ 7 days
Contact capacity:	3A(WW/LD)
Limit temperature range:	1~70°C
Range of temperature adjustment:	5~35°C
Insulating condition:	Normal environment
Probe sensor:	NTC(10k)1%
Output:	Switch relay
Installation:	recessed type (in the wall)
Size(mm)：	1309027mm
Material:	Anti-flammable PC +ABS

Product Feature

Energy efficient: Automatic sensing test, energy saving and environmental protection.

fantastic price: This is a professional functional wind speed humidity meter, which has high efficiency and easy operation.

smart device: Large screen lcd display with backlight, easy to read and operate.

very precise: It has good compatibility, with simple structure and fine craftsmanship. Large lcd screen with wide dial, simple and elegant appearance.

Product Application

Working Voltage: 1.5V * 2pcs AA battery;
Output Power can be made 220V/110V;
Current Load: 3A;
Temperature Control Accuracy: 0.5/-0.5 Celsius;
Setting Temperature Range: 5-35 Celsius;
Limiting Temperature Range:5-99 Celsius;
Consumption:<0.3W;
Temperature Sensor: NTC.
