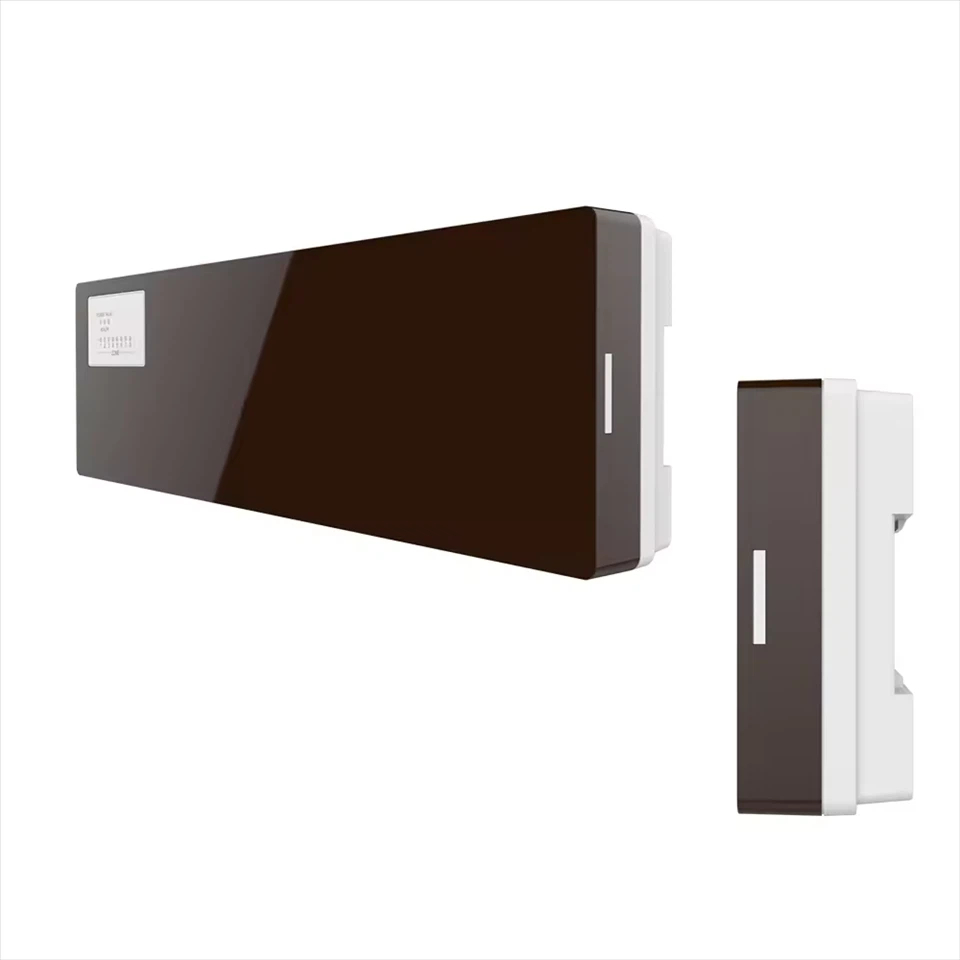

Wired Floor Heating System Control Box

Production Introduction

This is a centralized control box for plumbing, and it manages each area very neatly and clearly. Having 8 areas indicates that this large family centralized controller is suitable for 1 to 8 rooms or Spaces
This is the wired version, a thermostat of multiple brands. As long as you ensure the wiring is correct, our centralized control box can work together with the thermostat in your home. You can connect 2 actuators in each area, which means you can connect a total of 16 actuators.

Product Specifications

• Dimension:320x95x38 mm
• Mounting type:Din rail mounting/on wall
• Voltage: AC 100-240V,50/60Hz
• Max load current: 10(2)A, (normal fuse current is 2A)
• No. of zones : 8 No. of
• actuators per zone: 2
• Working temp :-20℃~60℃
• Color : white
• Case color: Brown/black

This is a wired centralized control box

• As shown in the image below
• You can connect up to 8 thermostats and 8 actuators
• You can control multiple rooms in your home from a single box

You can find more details in the diagram below

• Like simple wiring
• Time control
• Wiring and wiring position of the thermostat
• You can connect pumps, boilers, thermostats, actuators, etc. to the control box

Product Feature

◆ Each master controller can control a maximum of 8 rooms / zones.

◆ The master contains outputs for the switching of thermal actuators, boilersand valves.

◆ Indicator lights show the status of the outputs

◆ It can work with thermostats of various brands

◆ The installation and wiring are simple

◆ One area can control multiple actuators

FAQ

Q1:Could we order a sample to test ?

Sure.It is available.

Q2:What Certificate do you have for this product?

CE (EMC,LVD,Health and Radio) & Rohs.

Q3: Could we pack it with personalization package ?

Of course ,and MOQ is 1000pcs if needed.

Q4: How long is the delivery time ?

Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.

Q5: What Certificate do your factory have?

ISO9001 and BSCI certificate.
